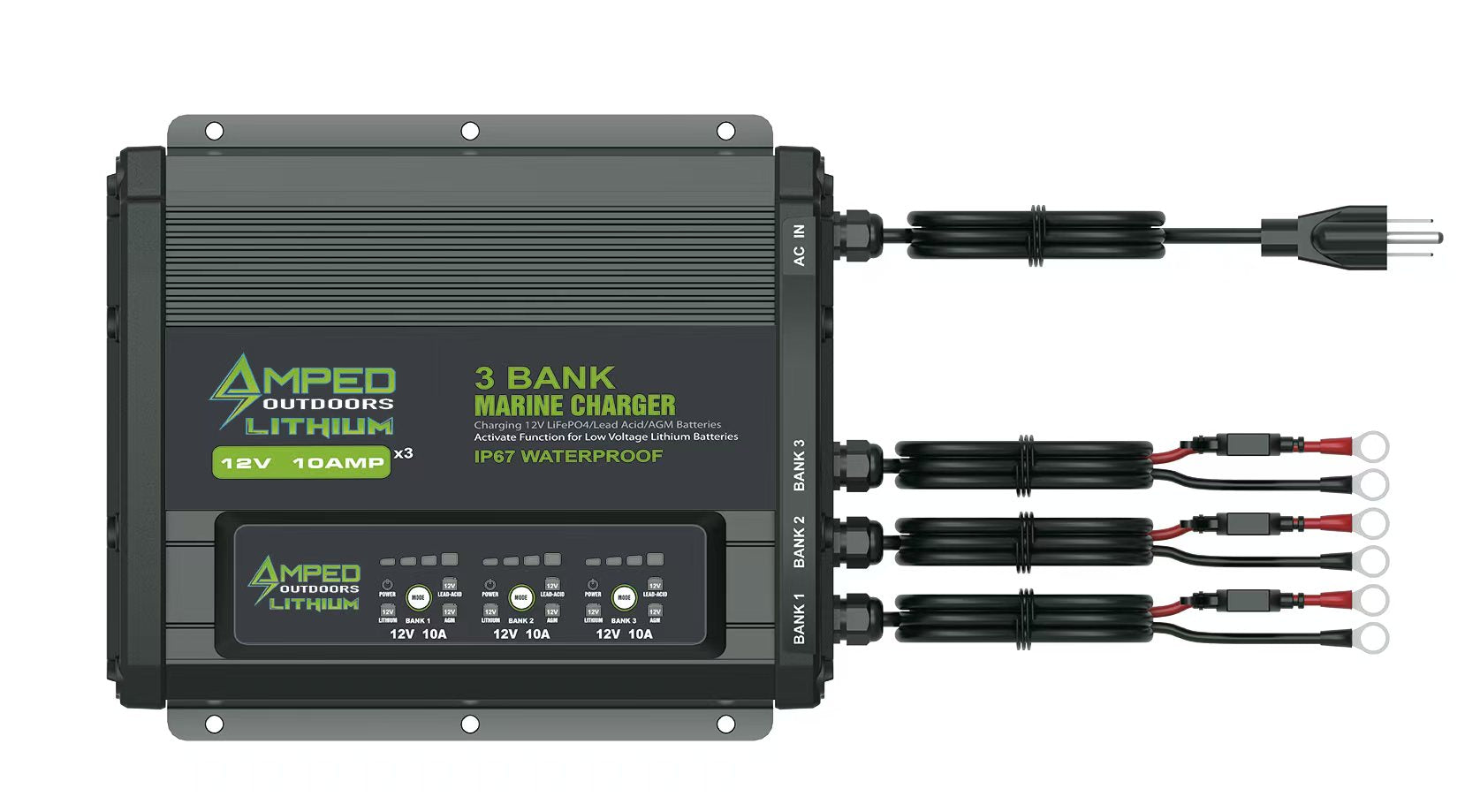

Amped Outdoors 3 Bank 12V On-Board Battery Charger
Couldn't load pickup availability
The Amped Outdoors 3 Bank 12V On-Board Battery Charger will allow you to charge 2 12V batteries. The 12V charging banks have a selectable Lead Acid, AGM and Lithium battery charging mode.
Model: AO-0331M
|
Product Name |
3-Bank Marine Charger with M8 Ring |
|
||
|
Model |
AO-0331M |
|
|
|
|
Input |
105-125V AC, 60Hz |
|||
|
Output |
3*12V/10A |
|
|
|
|
Product Size |
250*245*99mm |
|
|
|
|
Charging Battery Type |
12V LiFePO4/Wet/AGM |
|
||
|
LED Indicators |
Power & Battery Type & Charging Status LED Indicators |
|||
|
Activate Function |
Wake Up Function for Low Voltage of Lithium Battery (Press the mode button on the bank panel for 3-5 seconds to start this function) |
|||
|
Full Cut-off Voltage |
14.1V-14.4V for 12V Lead Acid Battery & 14.4V-14.7V for 12V AGM / LiFePO4 Lithium Battery |
|
||
|
Cooling Type |
Aluminium stretched plate and waterproof cooling fan at the bottom of product for better heat dissipation |
|||
|
Ingress Protection |
Filled with pure epoxy resin for high waterproof level IP67 |
|||
|
Circuit Protection |
Short-circuit Protection & Reverse Connection Protection & Overcharge Protection & Overtemp Protection |
|||
|
Working Temperature Range |
-10°C~40°C |
|||
|
Nominal Working Temperature |
25°C |
|||
|
Relative Humidity |
5%~95% |
|||
