Product Name

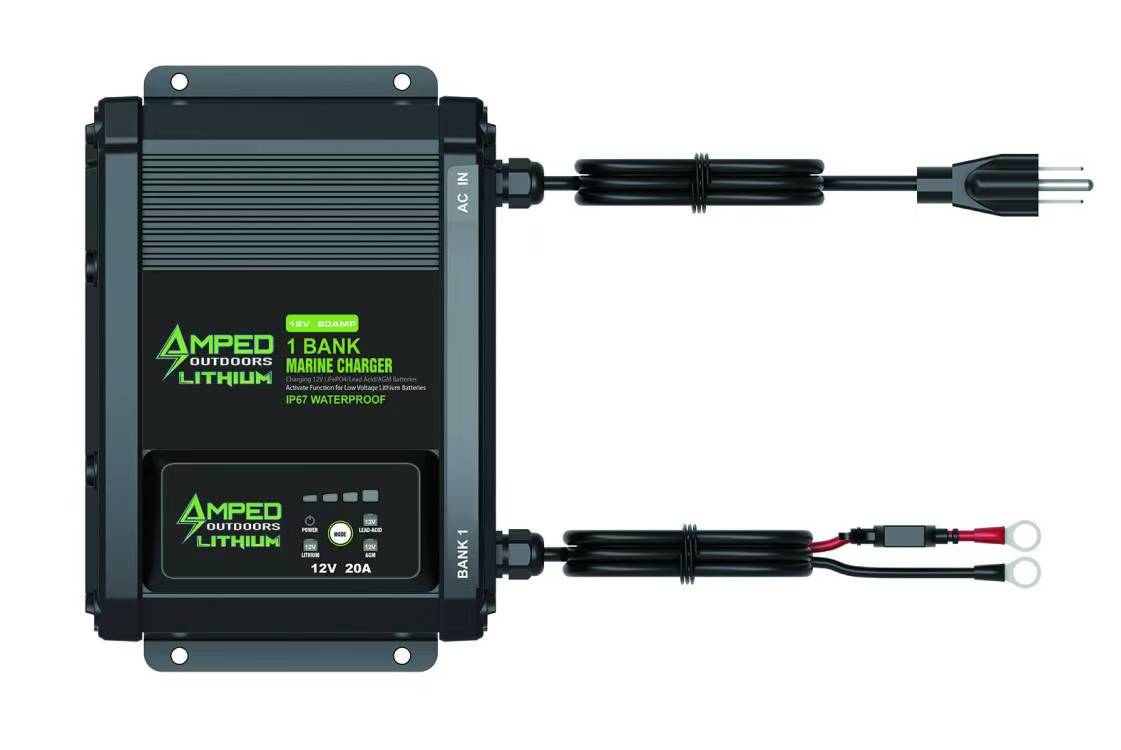

1-Bank Marine Charger

with M8 Ring

Model

AO-0324BM

Input

105-125V AC, 60Hz

Output

Product Size

166*245*99mm

6.5x9.6x3.9"

Charging Battery Type

12V

LiFePO4/Wet/AGM

LED Indicators

Power & Battery Type & Charging Status LED Indicators

Activate Function

Wake Up Function for Low Voltage of Lithium Battery (Press the mode button on the bank panel for 3-5 seconds to start this function)

Full Cut-off Voltage

14.1V-14.4V for 12V Lead Acid Battery & 14.4V-14.7V for 12V AGM / LiFePO4 Lithium Battery

Cooling Type

Aluminium stretched plate and waterproof cooling fan at the bottom of product for better heat dissipation

Ingress Protection

Filled with pure epoxy resin for high waterproof level IP67

Circuit Protection

Short-circuit Protection & Reverse Connection Protection & Overcharge Protection & Overtemp Protection

Working Temperature Range

-10°C~40°C

Nominal Working Temperature

25°C

Relative Humidity

5%~95%
