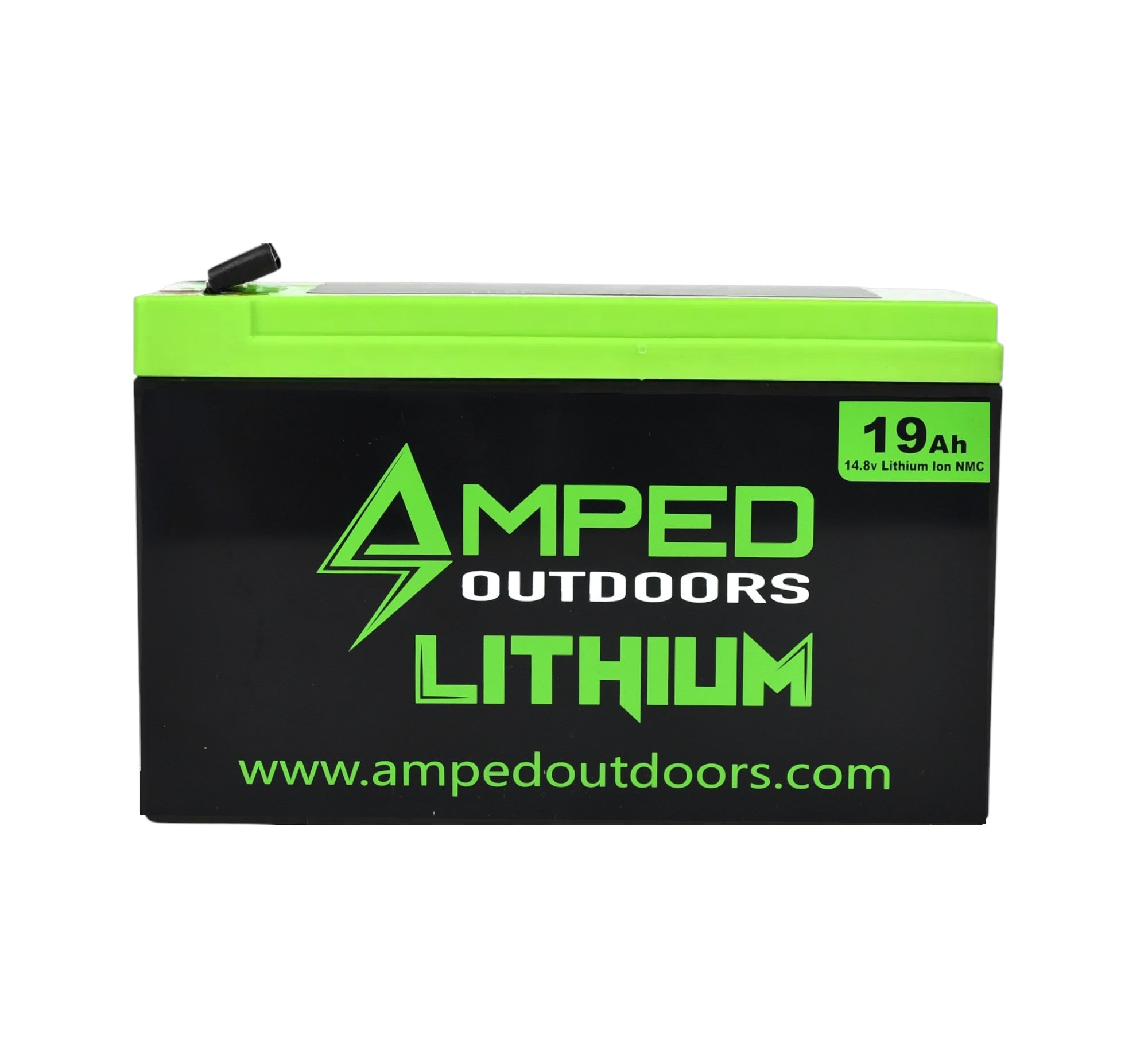

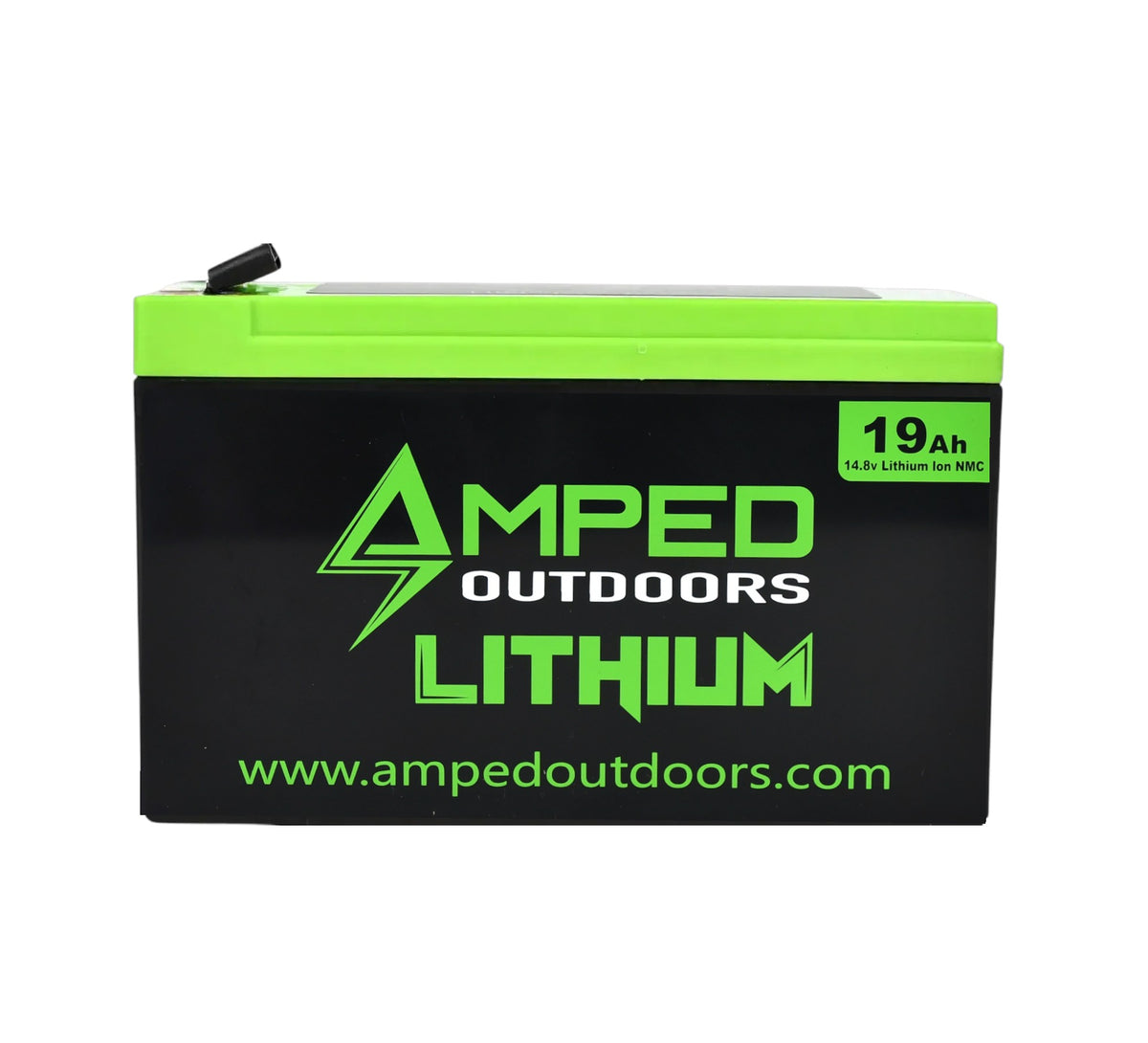

19Ah Lithium Battery (14.8V NMC) with Charger

In stock
Regular price $169.99
EMAIL ME WHEN IN STOCK

Our 19Ah (285Wh) 14.8V NMC Lithium Ion Battery is the highest capacity and longest lasting battery designed specifically for our advanced fishing electronics of today. Running out of power is no longer an issue with this battery as it has been tested with up to 140hrs* of operating time. This battery will give you 4x the capacity of a 9Ah SLA and 2x the capacity of a 10Ah LiFePO4 of the exact same size and weight!

NMC batteries were build for portable electronics use ONLY. They have higher energy density which means  they pack more power in smaller space. These are intended for portable shuttles and ice fishing. If used in a boat, please make sure you do not store them in the boat. Remove them after use and bring indoors, charge only indoors and never charge in your boat or leave your charger in the boat where it can get wet.

Why 14.8V NMC Lithium Ion? Since most of our fishing electronics today are made to operate up to 17+ volts, this battery has a working voltage of 16.8V when fully charged and 12V  when fully depleted. That means you have the most usable capacity and zero worries of low voltage poor returns/images from your electronics. Unlike the competition selling similar NMC batteries (Usually 11.1V), our batteries use only the best NMC Lithium from Japan. Instead of getting 300-400 charge cycles with NMC from others, Amped Outdoors NMC will give you 800-1000 Charge cycles and a longer life expectancy.

Same size as 7-9Ah SLA Batteries. Our 19Ah battery will fit just about portable fish finder or flasher on the market today. Please click on the brand link below for detailed operating times and compatibility. Not compatible with Raymarine. Brands listed below will work with 14.8V NMC Lithium!

Portable Shuttles - Below will list the brands of portable shuttles this battery will fit:

HD Innovations - Summit Fishing - Garmin (all units) - Humminbird (all units) - Lowrance (all units) - BassKhang - ArcLabs - Fin Gear - TKI -MarCum Roamer - and many more!

Click your brand below to see video content and expected operating times:

Humminbird  Humminbird Ice   Garmin     Vexilar    Lowrance



Contents:

  1. 19Ah Lithium Battery
  2. 16.8V Charger (Use with 14.8V Amped Outdoors Battery Only!)
  3. User Guide



Click here for Battery Manual and Detailed Specifications

  • Actual Voltage: 14.8V
  • Nominal Capacity: 19AH
  • Discharge Cut-Off: 12V
  • Charge Cut-Off: 16.8V
  • Charge Current: 15A Max
  • Cont. Discharge: 15A Max
  • Peak Discharge: 15A Max
  • Charge Temperature: 32F to 110F
  • Operation Temperature: -20F to 140F
  • Charge Method: CC/CV
  • Life Cycle: 800-1000
  • Terminal Type: Spade - F2 Connectors
  • Weight: 2lb 15oz
  • Warranty: 5yrs

Dimension: MM - L*W*H: 150*95*65  Inches - 5 7/8 x 2 1/2 x 3 5/8

Charging: All Amped Outdoors NMC batteries must be charged with supplied 16.8V Charger. Using any other charger could cause damage to the battery. Do not use ANY Amped Outdoors charger on a battery without a BMS such as SLA (sealed lead acid) batteries

Disclaimers: This battery is solely intended for 14.8v volt electronics use only. It may be wired in parallel to achieve a higher capacity but should not be run in series. Please contact us at Sales@Ampedoutdoors.com if you are looking for a battery that may be run in series to achieve a higher voltage.

DO NOT DISMANTLE OR SHORT CIRCUIT THE BATTERY!

DO NOT CRUSH OR PUNCTURE THE BATTERY!

DO NOT PLACE THE BATTERY NEAR RESOURCES OF HEAT SUCH AS OPEN FLAME!

DO NOT PLACE BATTERY IN FLUIDS SUCH AS (SALT) WATER ACID OR ALKALINE!

DO NOT CHARGE THE BATTERY OUTDOORS. NMC CHARGER IS NOT WATERPROOF AMD NOT SUITED FOR ON BOARD INSTALLATION!

WARNING: WARNING: Lithium-ion batteries and products that contain lithium-ion batteries can expose you to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm.. For more information go to www.p65Warnings.ca.gov.
