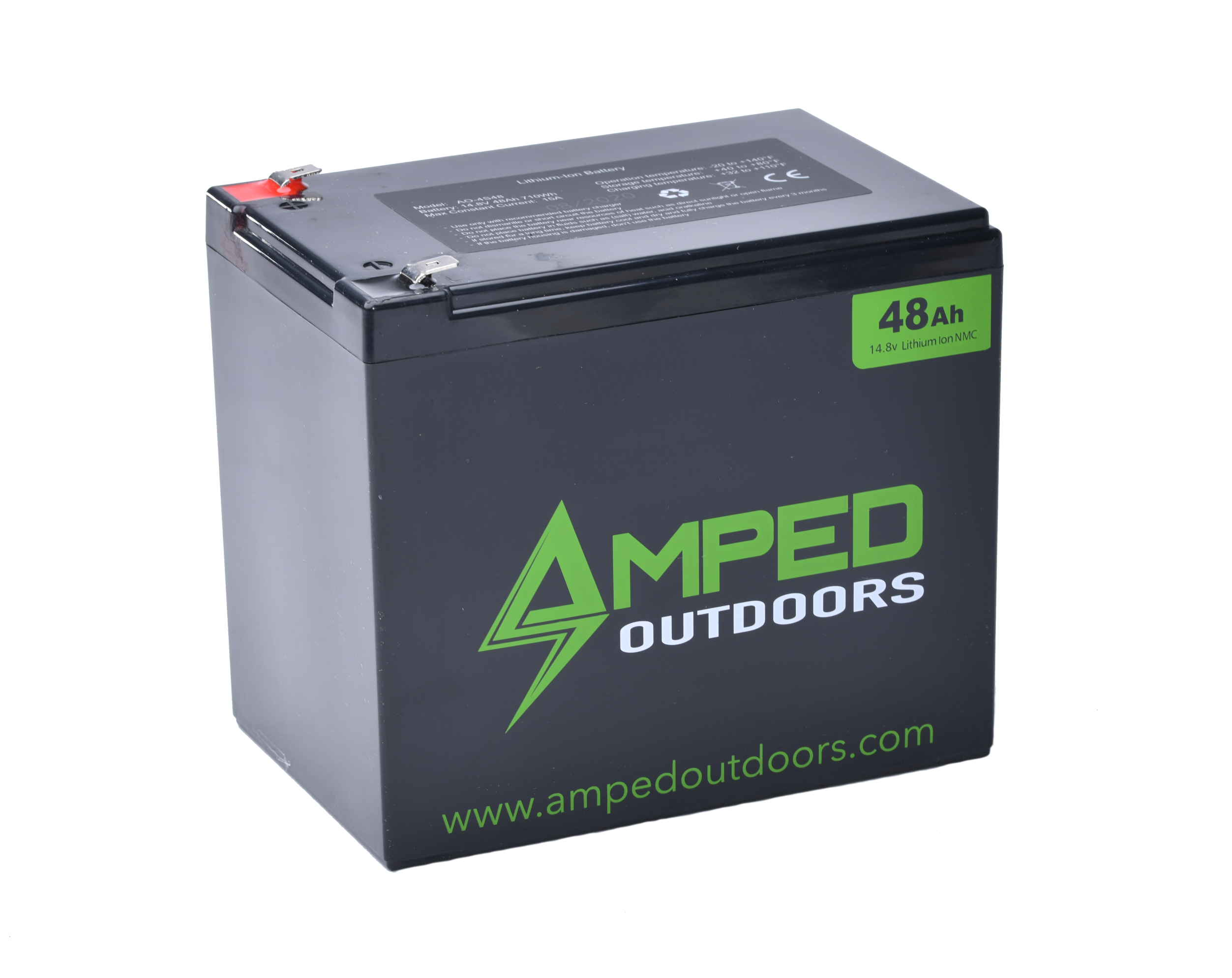

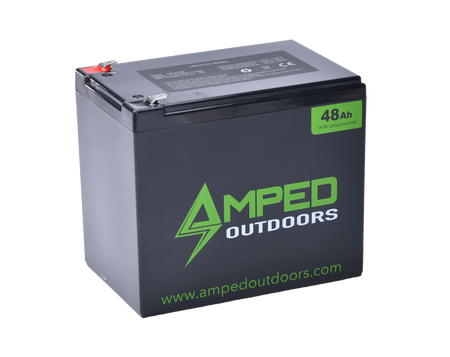

48Ah Lithium Battery (14.8V NMC) with Charger
THIS BATTERY IS FOR FISHING ELECTRONICS ONLY AND WILL NOT WORK WITH TROLLING MOTORS!
Highest capacity battery to fit Garmin Bag in the industry today! Our new 48Ah (710Wh) 14.8V NMC Lithium Ion Battery is the highest capacity and longest lasting battery designed specifically for our advanced fishing electronics of today. Running out of power is no longer an issue when running high current electronics of today.
Why 14.8V NMC Lithium Ion? Since most of our fishing electronics today are made to operate up to 17+ volts, this battery has a working voltage of 16.8V when fully charged and 12V when fully depleted. That means you have the most usable capacity and zero worries of low voltage poor returns/images from your electronics. Unlike the competition selling similar NMC batteries (Usually 11.1V), our batteries use only the best NMC Lithium from Japan. Instead of getting 300-400 charge cycles with NMC from others, Amped Outdoors NMC will give you 800-1000 Charge cycles and a longer life expectancy.
This model is the same size as the 30Ah LiFePO4 Amped Outdoors Battery. Will fit all Garmin Livescope/Panoptix Products! Please click on the brand link below for detailed operating times and compatibility. Brands listed below will work with 14.8V NMC Lithium!
Fishing Electronics Connection Kit - Sold Separately
- 48Ah Lithium Battery

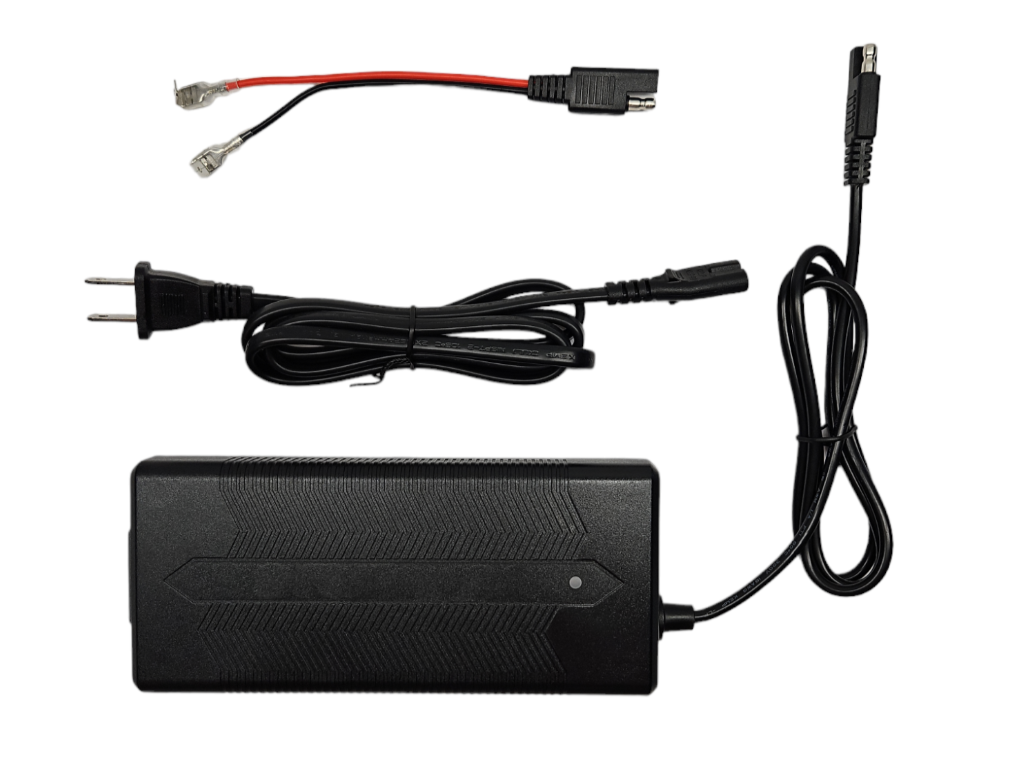

- 16.8V Charger (Use with 14.8V Amped Outdoors Battery Only!)
- User Guide
Battery and BMS specifications:
Actual Voltage: 14.8V
Nominal Capacity: 48AH
Discharge Cut-Off: 12V
Charge Cut-Off: 16.8V
Charge Current: 15A Max
Cont. Discharge: 15A Max
Peak Discharge: 15A Max
Charge Temperature: 32F to 110F
Operation Temperature: -20F to 140F
Charge Method: CC/CV
Life Cycle: 800-1000
Terminal Type: Spade - F2 Connectors
Weight: 7lb 1oz
Dimension:L*W*H: 150*99*131, Inches - 5 7/8 x 3 29/32 x 5 1/8
Charging: All Amped Outdoors NMC batteries must be charged with supplied 16.8V Charger. Using any other charger could cause damage to the battery. Do not use ANY Amped Outdoors charger on a battery without a BMS such as SLA (sealed lead acid) batteries
Warranty: 30 day satisfaction money back guarantee. 2 year free replacement warranty on all batteries deemed defective under normal use.
Disclaimers: This battery is solely intended for 14.8v volt electronics use only. It may be wired in parallel to achieve a higher capacity but should not be run in series. Please contact us at Sales@Ampedoutdoors.com if you are looking for a battery that may be run in series to achieve a higher voltage.
DO NOT DISMANTLE OR SHORT CIRCUIT THE BATTERY!
DO NOT CRUSH OR PUNCTURE THE BATTERY!
DO NOT PLACE THE BATTERY NEAR RESOURCES OF HEAT SUCH AS OPEN FLAME!
DO NOT PLACE BATTERY IN FLUIDS SUCH AS (SALT) WATER ACID OR ALKALINE!
DO NOT CHARGE THE BATTERY OUTDOORS. NMC CHARGER IS NOT WATERPROOF AMD NOT SUITED FOR ON BOARD INSTALLATION!
WARNING: WARNING: Lithium-ion batteries and products that contain lithium-ion batteries can expose you to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm.. For more information go to www.p65Warnings.ca.gov.
